Embedded SDK · Quickstart

Quickstart

Mount the Voxify editor on a page in under 5 minutes. Three steps: load the bundle, add a mount target, and call create() with your auth callbacks.

Before you start You need a Voxify publicKey and a backend endpoint that can mint short-lived session tokens for your end users. If you don't have those yet, see Authentication — you can still follow this page using the sandbox token below.

1. Load the bundle

Add the stylesheet and the script to your page. Both are served from voxify.studio on an evergreen URL — there's no build step.

html

<link rel="stylesheet" href="https://cdn.voxify.studio/voxify-embedded.min.css" />

<!-- Material Symbols + Font Awesome (used by editor toolbar icons) -->
<link rel="stylesheet"
      href="https://fonts.googleapis.com/css2?family=Material+Symbols+Outlined:opsz,wght,FILL,GRAD@20..48,100..700,0..1,-50..200" />
<link rel="stylesheet"
      href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.5.2/css/all.min.css" />

<script src="https://cdn.voxify.studio/voxify-embedded.min.js"></script>

The script tag exposes window.VoxifyStudioEditor and sets window.__VOXIFY_EMBEDDED_MODE__ = true so the bundle knows it's running outside the platform app.

2. Add a mount target

The editor mounts into a four-cell layout: a top toolbar, a left creatives panel, a right properties panel, and a center script editor. You provide the wrapper:

html

<div class="border-layout" style="padding:10px">
  <div class="north" style="min-height:10px"></div>
  <div class="west" style="min-width:100px"></div>
  <div class="east" style="min-width:100px"></div>
  <div id="voxify-script-editor-root" class="center"></div>
</div>

Pass the #voxify-script-editor-root selector as target to create(). You can use any selector or DOM element — the four-cell wrapper is required only if you want the toolbar / side panels in their default positions.

3. Call `create()`

The SDK needs two things: where to mount, and how to authenticate. Auth is a pair of callbacks you provide — the SDK calls getToken once on init, and refreshToken later if the token expires. Both should hit your backend, not Voxify directly.

javascript

window.VoxifyStudioEditor.create({
  target: '#voxify-script-editor-root',

  auth: {
    getToken: async (userId) => {
      // Call YOUR backend, which calls Voxify's /v1/auth/token with your publicKey.
      const res = await fetch('/api/voxify/token', {
        method: 'POST',
        headers: { 'Content-Type': 'application/json' },
        body: JSON.stringify({ userId }),
      });
      const data = await res.json();
      return data.accessToken.token;     // string Bearer token
    },
    refreshToken: async (expiredToken) => {
      const res = await fetch('/api/voxify/refresh', {
        method: 'POST',
        headers: { 'Authorization': 'Bearer ' + expiredToken },
      });
      return (await res.json()).accessToken.token;
    },
  },

  layout: {
    height:    '600px',
    westWidth: '244px',
    eastWidth: '30%',
  },
}).then(editor => {
  // Editor is mounted. `editor.projectId` is stable for this session.
  console.log('Voxify ready. projectId:', editor.projectId);
}).catch(err => {
  console.error('Voxify create() failed:', err);
});

That's it. The editor is now mounted and your end users can start a script.

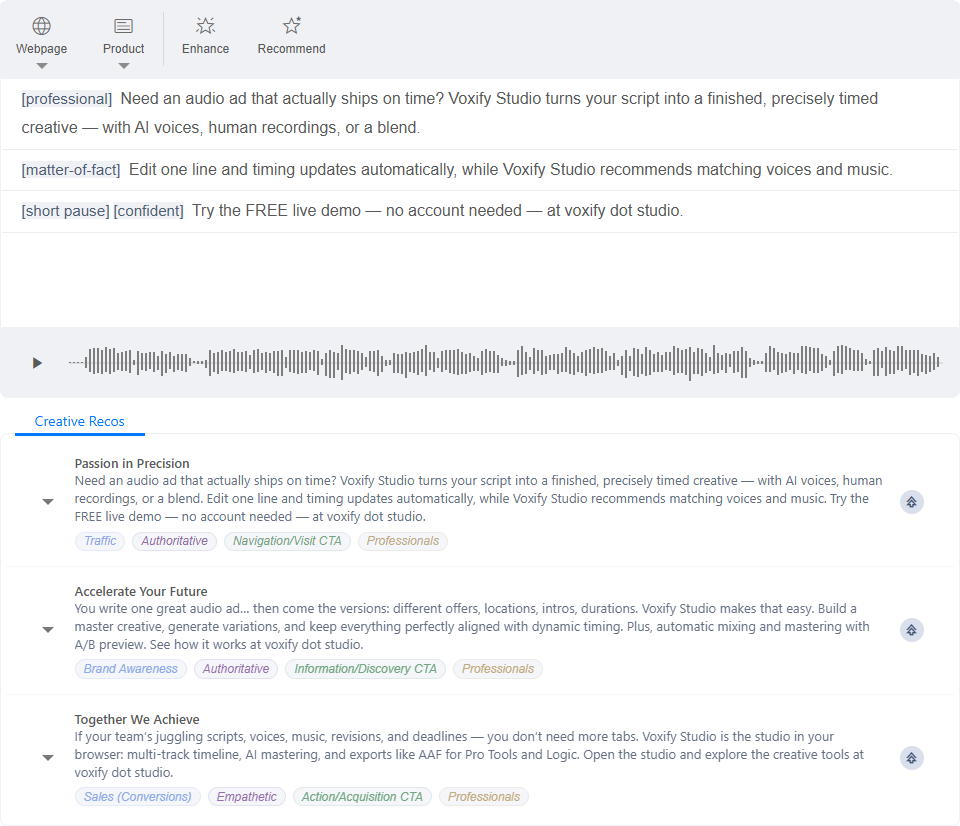

The Voxify embedded editor mounted on a host page: the kickoff toolbar (Webpage, Product, Enhance, Recommend), a tagged script, the waveform player, and the Creative Recos panel.

What just happened

The SDK called your getToken with the resolved user ID (auto-generated from a device fingerprint if you didn't pass one).
It opened a session against /embedded/session using the returned Bearer token, and hydrated permissions for that end user.
It built the three-panel layout and the toolbar, and returned an editor handle with projectId, flush(), getCreatives(), and enhance() methods.
From now on, every request the editor makes to /v1/* carries the Bearer token. If a request 401s, the SDK calls your refreshToken automatically and retries.

See it running first

Want to see the editor live before you wire up a backend? The free demo runs the real embedded editor right on the page — no account, no setup on your side. It's a deliberately minimal embed: just the Webpage and Product kickoff tools plus Enhance, in a compact layout — a good feel for the leanest useful configuration. To build the matching snippet, use the Embed Builder.

The demo is anonymous and limited. It mints a short-lived token for an anonymous visitor and caps how much you can run. Your production integration mints tokens for your own users through your own backend — see Authentication.

Common pitfalls

The editor doesn't appear

Check the browser console — create() returns a Promise that rejects with a descriptive error if auth or DOM setup fails.
Make sure the element matched by target exists in the DOM before you call create(). The SDK does not poll.
Confirm the CSS file is loaded. Without it the editor mounts but renders unstyled — easy to miss because the script editor still works.

401 on every request

Your getToken must return either a string or { token, type }. Anything else is treated as a failure.
The token must be issued for the same publicKey the Voxify account expects. Mixing dev and prod keys is a common gotcha.

CORS errors from `/v1/*`

The SDK calls Voxify's API directly from the browser; Voxify allows requests from any origin by default, but if you proxy the endpoints through your own backend make sure the proxy passes through the Authorization header.
